I. Main Application Scenarios of PVDF in Semiconductor Manufacturing

The core semiconductor manufacturing processes are divided into four major segments: wet cleaning, high-purity fluid delivery, anti-corrosion structural equipment components, and anti-static transmission fittings. PVDF serves as the primary structural material for wet process equipment, applicable to most tooling and mechanical parts for wafer fabrication.

1. Core Tooling for Wafer Wet Cleaning (Primary Application of PVDF Rods)

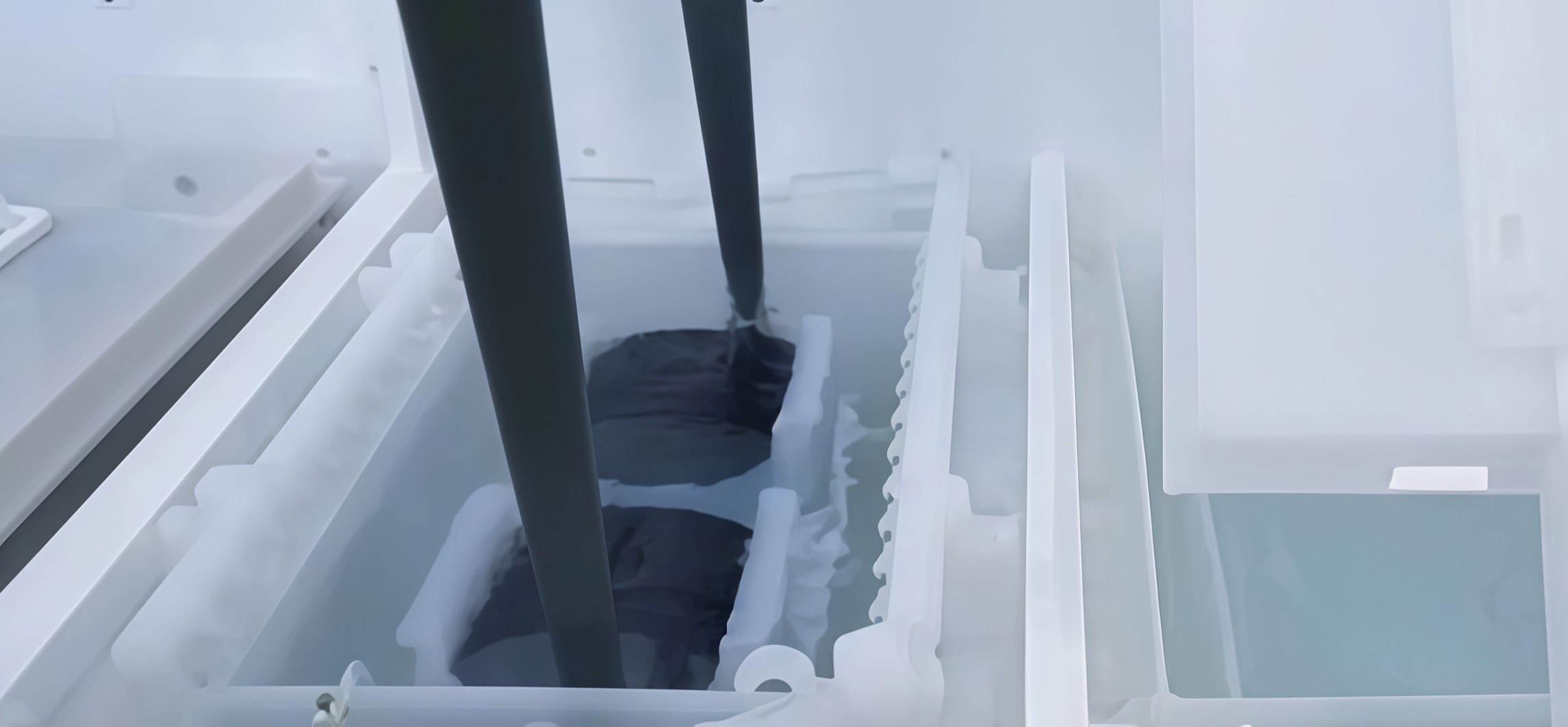

Wafer Cleaning Baskets / Wafer Carriers

Toothed rods, support shafts and fixing side plates are machined from PVDF rods to hold 6/8/12-inch silicon wafers. These baskets are fully submerged in chemicals such as hydrofluoric acid (HF), hydrogen peroxide, hot alkalis and mixed etching acids, ranking as the highest-consumption PVDF products on production lines.The toothed PVDF rods precisely space out wafers to prevent surface scratches and wafer adhesion, compatible with automatic loading and unloading of batch wet benches and single-wafer cleaning equipment.

Supporting Basket Accessories

PVDF support shafts, positioning pins, fasteners and separating racks are all precision turned from extruded PVDF rods.

2. Anti-Corrosion Structural Components for Wet Benches

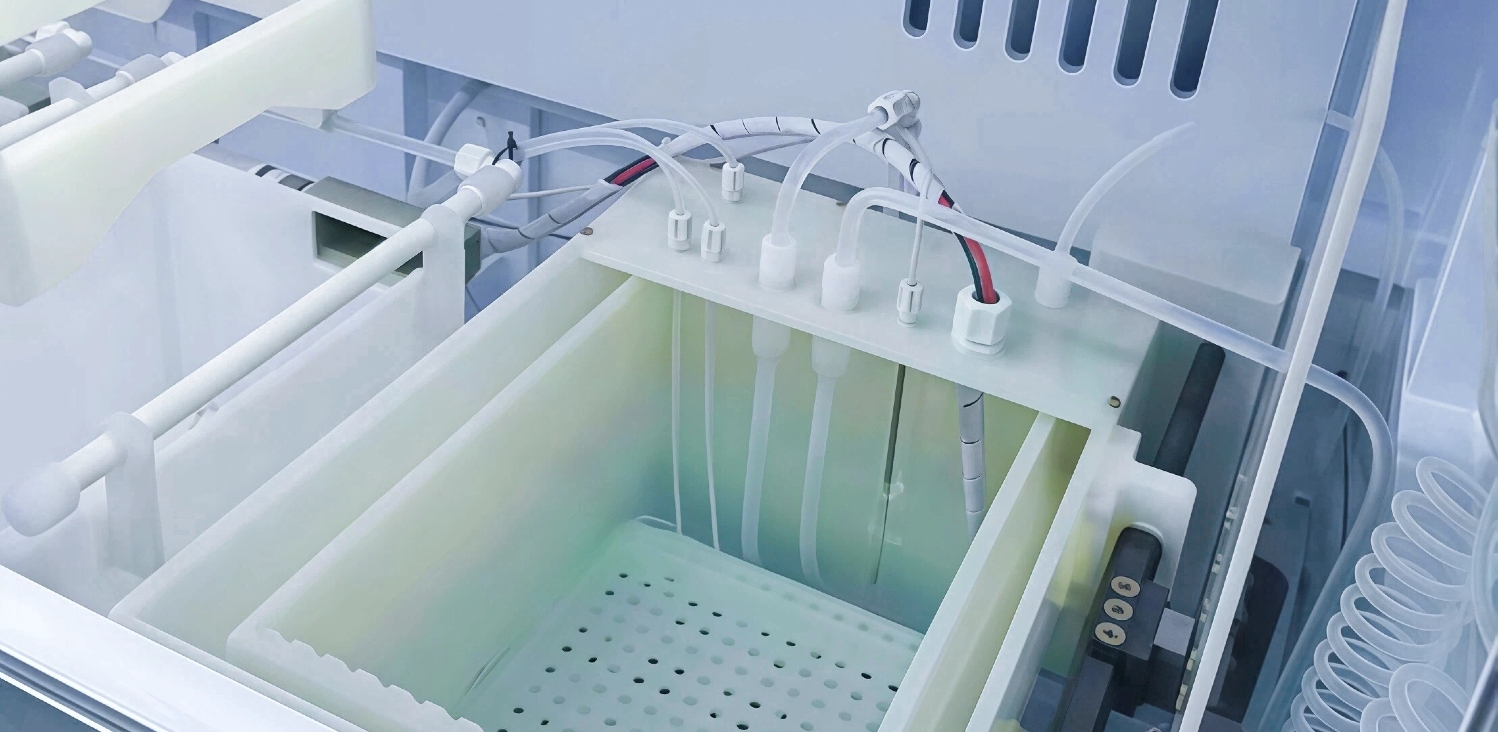

• Cleaning tank bodies, overflow weirs, flow deflectors, spray brackets and chemical distribution manifolds, fabricated via welding PVDF sheets and rods;

• Anti-corrosion pump and valve assemblies: PVDF valve stems, valve plugs, pump sleeves, bearings and gears for transporting high-purity etching and cleaning chemicals;

• Housings and internal liners of corrosion-resistant level gauges and flow meters, featuring zero leakage and zero medium contamination under long-term exposure to highly corrosive acid and alkali solutions.

3. Anti-Static & Wear-Resistant Precision Transmission Parts (Conductive Modified PVDF Rods)

To avoid electrostatic breakdown of wafers, carbon black or carbon fiber filled conductive PVDF rods are processed into anti-static bearings, corrosion-resistant gears, rollers and conveyor guide rails:

• Transmission gears and transport rollers for cleaning machines with self-lubricating, maintenance-free performance;

• Anti-static positioning tooling that dissipates static buildup and protects delicate circuitry on wafer chips.




II. Six Core Advantages of PVDF for Harsh Semiconductor Working Conditions

1. Extreme Chemical Resistance, Compatible with All Types of Semiconductor Chemicals

PVDF features a stable carbon-fluorine molecular structure, enabling long-term resistance to all highly corrosive media used in semiconductor manufacturing: 49% hydrofluoric acid (HF), concentrated sulfuric acid, concentrated phosphoric acid, hydrogen peroxide, photoresist strippers and various organic etching solvents. It remains free of swelling, cracking or decomposition after immersion within a wide temperature range of -40℃ to 125℃.Compared with PP, nylon and POM: conventional plastics swell and deform rapidly upon contact with hydrofluoric acid, while metal fittings corrode and rust directly. Only PVDF delivers long-term stable performance for all chemical environments in wet cleaning processes.

2. Excellent Mechanical Toughness & Dimensional Stability for High-Frequency Automated Cycles

PVDF boasts high strength and superior toughness. The toothed support bars of wafer baskets machined from PVDF rods will not become brittle or fracture under repeated lifting and alternating hot-cold chemical exposure. They can support ultra-thin silicon wafers as thin as 120 μm and lower wafer breakage loss.With a low coefficient of thermal expansion, PVDF maintains fixed dimensions under hot chemicals and thermal cycling. The slot clearance of wafer baskets stays consistent to prevent wafer jamming and edge scratching.Its wear-resistant and self-lubricating property ensures PVDF gears and bearings operate without shedding debris. No lubricating oil is required for long-term service, eliminating oil contamination risks in cleanrooms.

3. Inherent UL94 V-0 Highest Flame Retardant Rating for Cleanroom Compliance

Semiconductor cleanrooms enforce strict fire safety standards. Without additional flame retardant additives, PVDF achieves UL94 V-0 vertical flammability rating: it self-extinguishes rapidly once the flame source is removed and produces no flaming molten drips that could ignite nearby wafers or flammable chemicals.Ordinary plastics rated V-2 melt and drip with open flames under high temperatures, posing severe fire hazards to production lines. All semiconductor fabs mandate V-0 fluoropolymer components for production equipment.

4. Complete Anti-Static Modification Solutions to Prevent Electrostatic Breakdown

Custom carbon black or carbon fiber filled conductive/anti-static PVDF rods are available with controllable surface resistance ranging from 10⁶ to 10¹⁰ Ω·cm. This effectively addresses the pain point of electrostatic discharge generated by fluid friction during cleaning, which would otherwise break down chip circuits. Such modified materials are widely applied to wafer transport rollers, transmission gears and tooling fixtures.

5. Superior Precision Machinability for Custom Non-Standard Components of All Sizes

PVDF rods exhibit excellent performance in turning, milling, drilling and welding. Custom toothed basket shafts, valve parts and instrument fittings of any specification can be fabricated according to wafer sizes (4/6/8/12-inch) and equipment drawings.Its dense, smooth surface resists residual chemicals and particle adhesion, and dries quickly after rinsing to reduce cross-contamination risks.

III. Competitive Advantages as a Source Manufacturer

1. Controllable Raw Material Quality with Exclusive Production Line for Semiconductor-Grade High-Purity PVDF

All PVDF sheets and rods are manufactured from virgin brand-new PVDF raw materials with zero recycled regrind. Ion leaching test reports are available for every production batch.

2. Full Range of Sizes with Ample Stock of Standard & Conductive Modified PVDF Rods

Standard PVDF rods ranging from Φ10 mm to Φ300 mm are kept in ready stock. Custom anti-static conductive PVDF rods and carbon-fiber reinforced wear-resistant PVDF rods are also available for machining all semiconductor parts including basket toothed shafts, pumps & valve components, gears and level gauge accessories. Fast lead time is guaranteed for rush orders.

3. One-Stop Supporting Precision Deep Processing Service

We provide precision cutting, gear turning, drilling and threading of PVDF rods based on customer drawings or samples. Finished products such as basket support shafts, valve stems, bearings and gears can be delivered directly, eliminating secondary processing costs for equipment manufacturers and machining factories with bulk purchasing demands.

4. Special Low-Internal-Stress Extrusion Process Ensuring Zero Distortion of Finished Parts

PVDF rods are extruded via a low-speed constant-temperature process to minimize internal residual stress. Machined components will not warp or crack even after long-term immersion in high-temperature acid and alkali liquids, greatly extending the service life of wafer baskets and anti-corrosion spare parts and reducing customers’ replacement frequency.

5. Professional Application Technical Support & Custom Material Selection Solutions

With years of experience in fluoropolymer applications for the semiconductor industry, we recommend virgin PVDF or conductive modified PVDF grades tailored to customers’ chemical media, operating temperatures and anti-static requirements. Professional material selection schemes are offered for different processes including wet cleaning, fluid delivery and anti-static transmission, with full-cycle technical support covering pre-sales consultation and after-sales service.
